Customized Cumins 634kw Diesel Engine Cutter Sand Dredger with Hydraulic Cutter Head

Model NO. : QHCSD-145

Slot Type : CTD

Customized : Customized

Condition : New

Warranty : 1 Year

After-sales Service : Lifelong

Total Length : 27m

Total Width : 7.5m

Total Depth : 3.5m

Total Weight : 145t

Main Engine Brand/Power : Cumins /634kw

Auxiliary Engine Power : 220kw

Pump Size : 350ND

Head : 45m

Dredging Depth : 11m

Discharge Distance : 1500m

Discharge Pipe Diameter : 300mm

Cutter Head Power : 70kw

Anchor Boom Length : 14m

Cutter Head Diameter : 1500mm

Total Fuel Consumption : 98kw

Transport Package : in Bulk

Specification : Capacity 400m3/h

Trademark : Set Sail

Origin : China

HS Code : 895100000

Supply Ability : 2500set /Year

Package Size : 3100.00cm * 700.00cm * 200.00cm

Package Gross Weight : 160000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Hydrocyclone

Samples : US$ 10000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

High efficiency diesel engine cutter sand dredger with cutter head

1. 14 inch cutter suction dredger parameter

Dredging depth	11m
Capacity	400m3
Discharge distance	1500m
Draft	1.2m
Total weight	145t
Total length	27m
Total width	7.5m
Total hight	2m
Main pump size	350ND
Water flow	2000m3
Speed	11/22/33
Discharge distance pipe diameter	250mm
Main engine power/brand	634kw
Auxiliary engine power /brand	220kw
Pump Gearbox brand	Fada
Speed ratio	2:1
Hydraulic gearbox brand	Fada
Cutter head diameter	1500mm
Cutter head power	70kw
Spud diameter /wall thickness	425mm*20mm
Spud Length	17m
Spud weight	7.2t
swing winch wire rope diameter	22mm
Lifting winch wire rope diameter	24mm
trolley moveing distance	2.5m-4m
Oil cylinder diameter	160mm
Hydraulic system brand	Rexroth/Huade
Anchor weight	400kg

Customized Cumins 634kw Diesel Engine Cutter Sand Dredger with Hydraulic Cutter Head

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ) .
2.Product pictures :

3.Detailed picture:

Cutter head brand : Qingzhou Set Sail

Power : Hydraulic power and electric power

Blade quantity :5 pieces

Cutter teeth quantity :50-60 pieces

Feature : Wearing resistance . density teeth . easily repare

Engine brand : Cumins . Weichai . Yuchai . Cat.

Power:220kw-2200kw

Feature : Stable performance . Low fuel consumption and failure

Pump brand : Shijiazhuang Kingda pump and Shijiazhuang industrial pump

Feature : Wearing resistance . long working life . large pass rate
double pump shell

Power : Diesel engine power . electric power

PLC brand : Simensi PLC

Function : control and spy all working situtation of the whole dredger

Hydraulic brand : Rexroth and parke

Power : diesel engine power . electric power

Feature : High pressure . reliable performance . low failure

Function: Apply all hydraulic power to the whole dredger

Hydraulic valve brand : Rexroth . parke

Feature : stable performance . low failure long service life

Function : control the hydraulic equuipment on the dredger

4.Cutter suction dredger feature:

Diesel engine	Normally cumins on dredger Cater .Weichai Yuchai and other can available
Cutter head	Generally drive power hydraulic . Electric power cutter head can offer
Generator set	Cumins brand generator set Weichai brand others can available
Hydraulic system	Hydraulic control system from Germany Rexroth
PLC system	PLC adopts advanced system from Germany Siemens

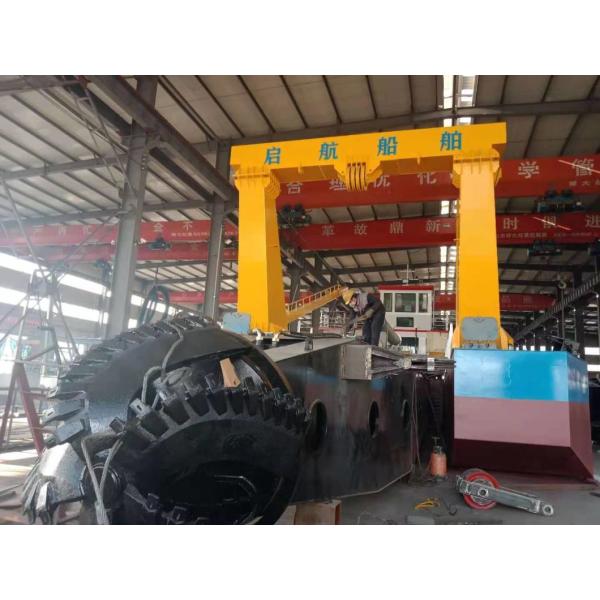

5.Cutter suction dredger in workshop:

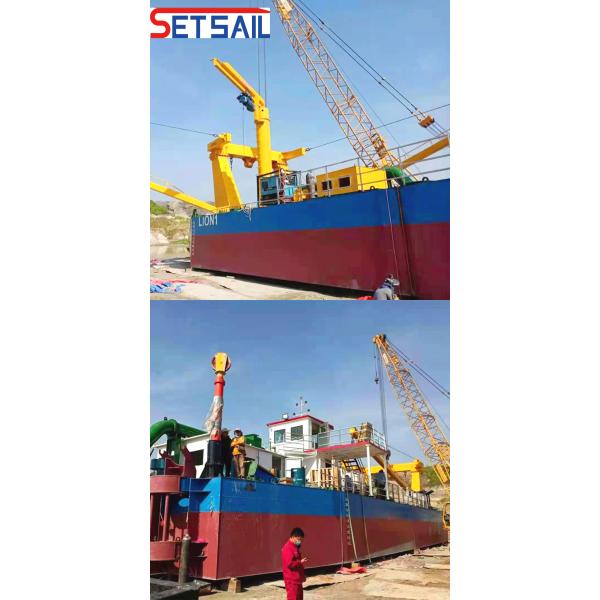

6.Cutter suction dredger in installation site :

7.Successful case :

8.Set Sail service :

Free dredger consultation and free product drawings
Customize dredgers based on the client's actual dredging needs
On-site visits and factory visit services provided by Set Sail
Arrange 2-3 Set Sail senior engineer and technicians to enter the working site within 36 hours
Free professional assembly, training and operating to make sure dredger operates smoothly
1-year warranty and Lifetime technical assistance
Sign after-sales service agreement with Set Sail clients
Offer spare parts at a discounted price
On-site parts available
Set Sail company require responsible Sales team, design team, manufacture team available 24/7 to best serve clients
Set Sail company signs a long-time after-sale service agreement with customers.we make an excellent filing of customers for long term following-up service.

9. FAQ :
Q1: Is Set Sail a reliable company?
Qingzhou Set Sail Dredging Machinery Equipment Co., Ltd. is located in Qingzhou City, Shandong Province, is a high-tech enterprise focusing on the investment, consultation, designing, manufacturing, assembly and operation management of environmental protection projects and machinery with more than 20 years' experience. Our factory covers 6000 m2 and has more than 100 employees.

Q2: What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual requests.
Set Sail always has various dredgers, aquatic weed harvesters etc. in stock. Spare parts are available too. Thus the delivery time can be shortened.

Q3: What's the payment method?
We can accept T/T, L/C, WESTERN UNION and so on.

Q4: What's the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.

Q5: Why choose Set Sail company?
We are factory, so we can design and manufacture the suitable dredger, water cleaning boat, mining machinery according to clients' requirements, and our equipment have good quality and competitive price.

10.Our factory mainly product :

11.Customer visit and factory certification :

12.Factory profile :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .

We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc.
